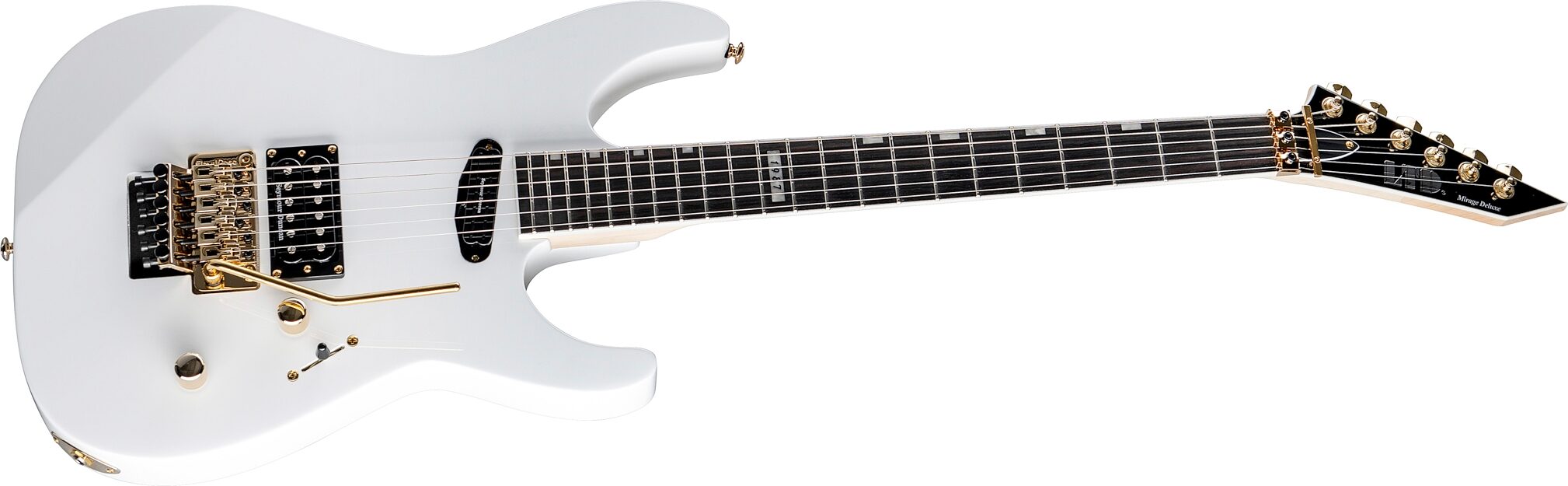

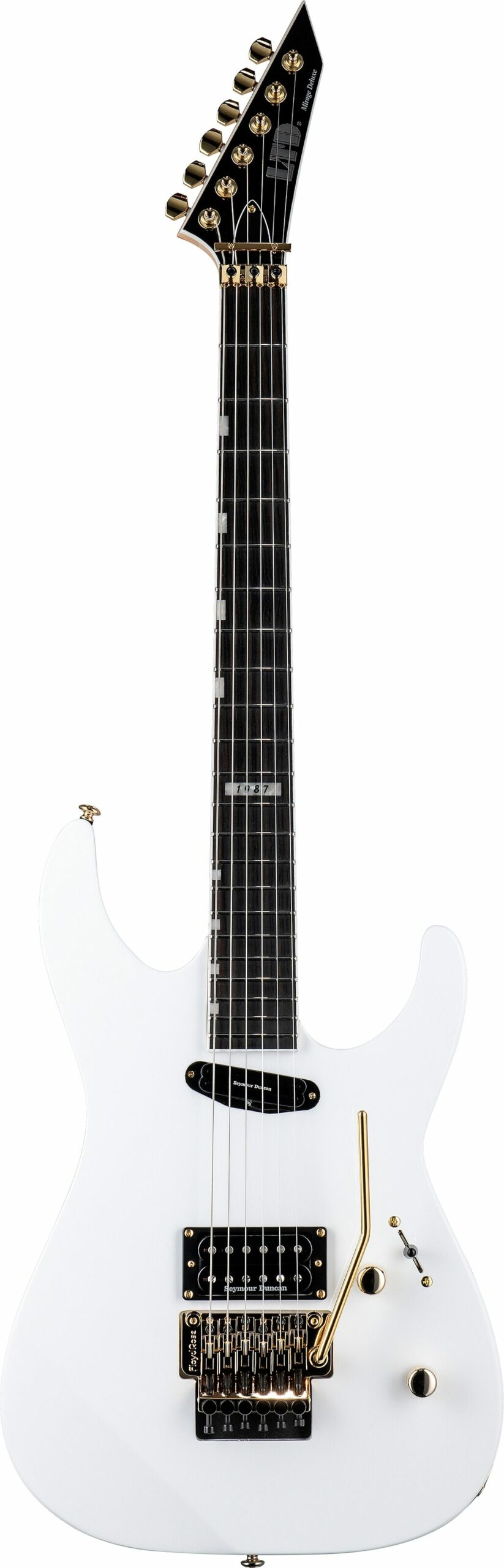

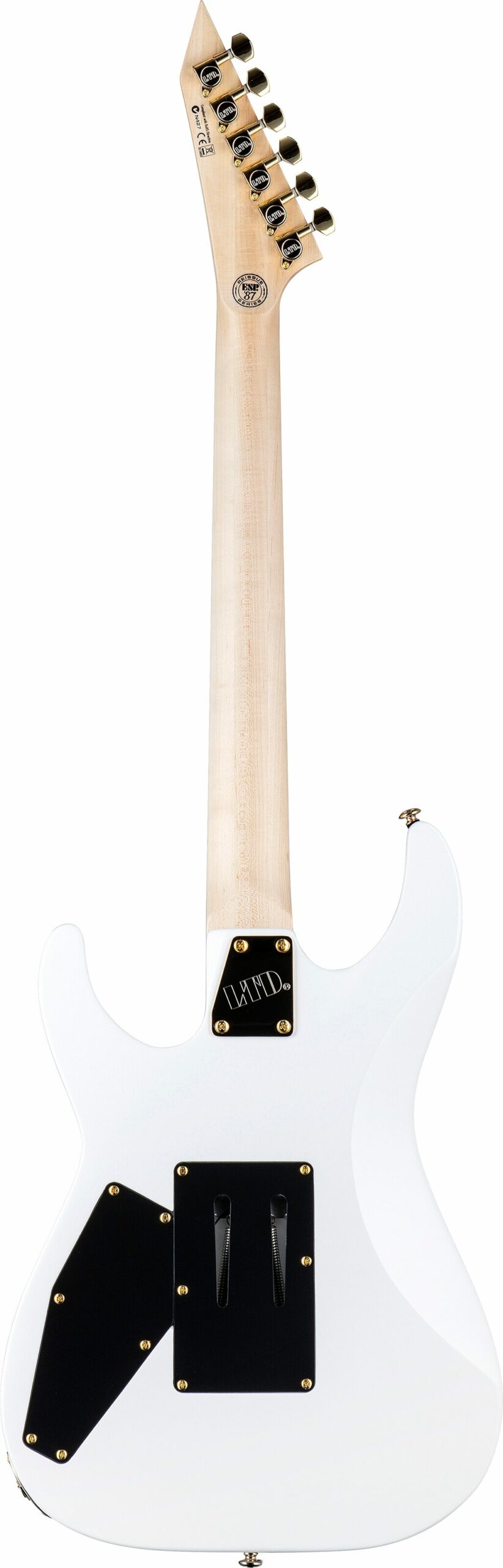

ESP LTD Mirage Deluxe 1987

Description

While ESP first got started in 1975 as a small repair shop in Tokyo, it was really toward the mid ‘80s when our guitars and basses grabbed the attention of players around the world. The LTD ’87 Series are faithful recreations of this set of instruments from ESP’s 1987 catalog. Based on the original ESP Mirage body shape, the LTD Mirage Deluxe ’87 is a bolt-on shred machine with an alder body and three-piece extra thin U-shaped maple neck. These guitars feature a Floyd Rose 1000 bridge and a pickup set that includes a Seymour TB-6 Duncan Distortion (with original style bobbins and a push-pull control to split the coils) in the bridge and a Hot Rail single coil in the neck position. The TB-6 is a classic Duncan high-output passive humbucker that incorporates a massive ceramic magnet and hot coil windings to deliver powerful but balanced rock and metal tones with rich upper-midrange harmonic content. The Hot Rail is a humbucker in a single coil-sized packed, delivering all the fat, warm, and fluid sounds you need.

SPECIFICATIONS
CONSTRUCTION
Bolt-On
SCALE
25.5″
BODY
Alder
NECK
3Pc Maple
FINGERBOARD
Macassar Ebony
FINGERBOARD RADIUS
350mm
FINISH
Snow White
NUT WIDTH
43mm
NUT TYPE
Locking
NECK CONTOUR
Extra Thin U
FRETS/TYPE
22 XJ
HARDWARE COLOR
Gold
STRAP BUTTON
Standard
TUNERS
LTD
BRIDGE
Floyd Rose 1000
NECK PU
Seymour Duncan Hot Rail *(Pull Tone for Split)
BRIDGE PU
Seymour Duncan Distortion *(Pull Tone for Split)
ELECTRONICS
Passive
ELECTRONICS LAYOUT
Volume/Tone(Push/Pull)/3-way Switch
STRINGS
D’Addario XL120 (.009/.011/.016/.024/.032/.042)
CASE
MH GUITAR FORM FIT CASE
CASE INCLUDED
N
